Zener Diode Working Animation: A Complete Guide
Are you curious about how zener diodes work? In this article, we will explain the working animation of zener diodes in a simple and easy-to-understand way. Zener diodes are essential components in electronic circuits, and understanding their operation is crucial for anyone interested in electronics. So, let's dive in!
What is a Zener Diode?
A zener diode is a type of diode that is designed to work in the reverse breakdown region. This means that when a certain voltage is applied in the reverse direction, the zener diode will start conducting current. The voltage at which this breakdown occurs is called the zener voltage or the breakdown voltage.
How Does a Zener Diode Work?
When a zener diode is connected in reverse bias, there is a negligible current flow through the diode until the voltage across it reaches the breakdown voltage. At this point, the zener diode starts conducting current in the reverse direction, and the voltage across it remains constant.
The reason why the voltage across the zener diode remains constant is due to the avalanche effect. At the breakdown voltage, the electric field across the depletion region of the diode becomes so strong that it ionizes the atoms in the crystal lattice. This creates a large number of electron-hole pairs, which results in a sudden increase in current flow through the diode.
As the current through the zener diode increases, the voltage drop across the diode remains constant. This is because the diode is designed to operate in the breakdown region, where the voltage drop across it is independent of the current flowing through it.
Zener Diode Applications

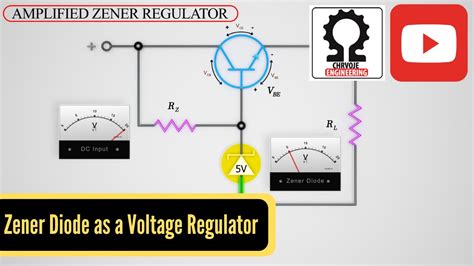

Zener diodes are used in various applications, including voltage regulation, voltage reference, and signal clipping. In voltage regulation, zener diodes are used to maintain a constant voltage across a load, despite changes in the input voltage. In voltage reference, zener diodes are used as a stable reference voltage for precision circuits. In signal clipping, zener diodes are used to limit the amplitude of a signal to a specific voltage level.
Zener Diode Characteristics
There are several important characteristics of zener diodes that you should be aware of:
- Breakdown voltage: The voltage at which the zener diode starts conducting.
- Maximum power dissipation: The maximum amount of power that the zener diode can handle without overheating.
- Zener impedance: The dynamic resistance of the zener diode, which affects the stability of the voltage across the diode.
Choosing a Zener Diode
When choosing a zener diode, you should consider the following factors:
- Breakdown voltage: Choose a zener diode with a breakdown voltage that is close to the desired voltage level.
- Maximum power dissipation: Choose a zener diode that can handle the maximum power dissipation required for your application.
- Zener impedance: Choose a zener diode with a low zener impedance for better voltage stability.
Advantages of Zener Diodes
Zener diodes offer several advantages over other voltage regulation techniques:
- Simple and easy to use
- Low cost
- High precision
- Low noise
- High stability
Disadvantages of Zener Diodes
Despite their many advantages, zener diodes also have some disadvantages:
- Low current handling capability
- High temperature coefficient
- Low efficiency
- Low power handling capability
Conclusion
Zener diodes are important components in electronic circuits, and understanding their working animation is essential for anyone interested in electronics. In this article, we have explained the operation of zener diodes in simple terms, covering their characteristics, applications, advantages, and disadvantages. We hope this article has been helpful, and we encourage you to experiment with zener diodes in your own projects!
Remember, always follow proper safety precautions when working with electronic components.
