Understanding Line And Load Regulation Of Zener Diode In 2023
As technology advances, the need for efficient voltage regulation becomes more important. Zener diodes have been widely used for voltage regulation, especially in applications where a constant voltage is required. In this article, we will discuss the line and load regulation of zener diodes and how they affect the output voltage. We will also look at how to calculate the regulation parameters and some practical applications of zener diodes.
What is Line Regulation?
Line regulation is the ability of a zener diode to maintain a constant output voltage despite changes in the input voltage. This means that the zener diode can maintain a constant voltage over a wide range of input voltages. The line regulation is expressed as a percentage change in output voltage per unit change in input voltage.
For example, if a zener diode has a line regulation of 0.1%/V, this means that the output voltage will change by 0.1% for every 1V change in the input voltage. A zener diode with good line regulation will have a low percentage change in output voltage for a given change in input voltage, while a zener diode with poor line regulation will have a high percentage change in output voltage.
What is Load Regulation?
Load regulation is the ability of a zener diode to maintain a constant output voltage despite changes in the load current. This means that the zener diode can maintain a constant voltage even when the load current changes. The load regulation is expressed as a percentage change in output voltage per unit change in load current.
For example, if a zener diode has a load regulation of 0.1%/mA, this means that the output voltage will change by 0.1% for every 1mA change in the load current. A zener diode with good load regulation will have a low percentage change in output voltage for a given change in load current, while a zener diode with poor load regulation will have a high percentage change in output voltage.
Calculation of Line and Load Regulation
The line regulation and load regulation of a zener diode can be calculated using the following formulas:
Line Regulation = ΔVout / ΔVin x 100%
Load Regulation = ΔVout / ΔIload x 100%
Where ΔVout is the change in output voltage, ΔVin is the change in input voltage, and ΔIload is the change in load current.
For example, if a zener diode has an output voltage of 5V and a line regulation of 0.1%/V, the output voltage will change by 0.005V for every 1V change in the input voltage. Similarly, if the same zener diode has a load regulation of 0.1%/mA, the output voltage will change by 0.0005V for every 1mA change in the load current.
Practical Applications of Zener Diodes
Zener diodes are widely used in voltage regulation applications, such as voltage regulators, power supplies, and voltage references. They are also used in electronic circuits that require a stable voltage source, such as amplifiers, oscillators, and signal generators.
Zener diodes are also used in surge protection circuits to protect sensitive electronic components from voltage spikes and transients. They can also be used in reverse-bias mode as a noise source in electronic circuits.
Factors Affecting Line and Load Regulation
The line and load regulation of a zener diode are affected by several factors, such as temperature, current, and aging. The line and load regulation can change with temperature due to changes in the zener voltage and the temperature coefficient of the zener diode.

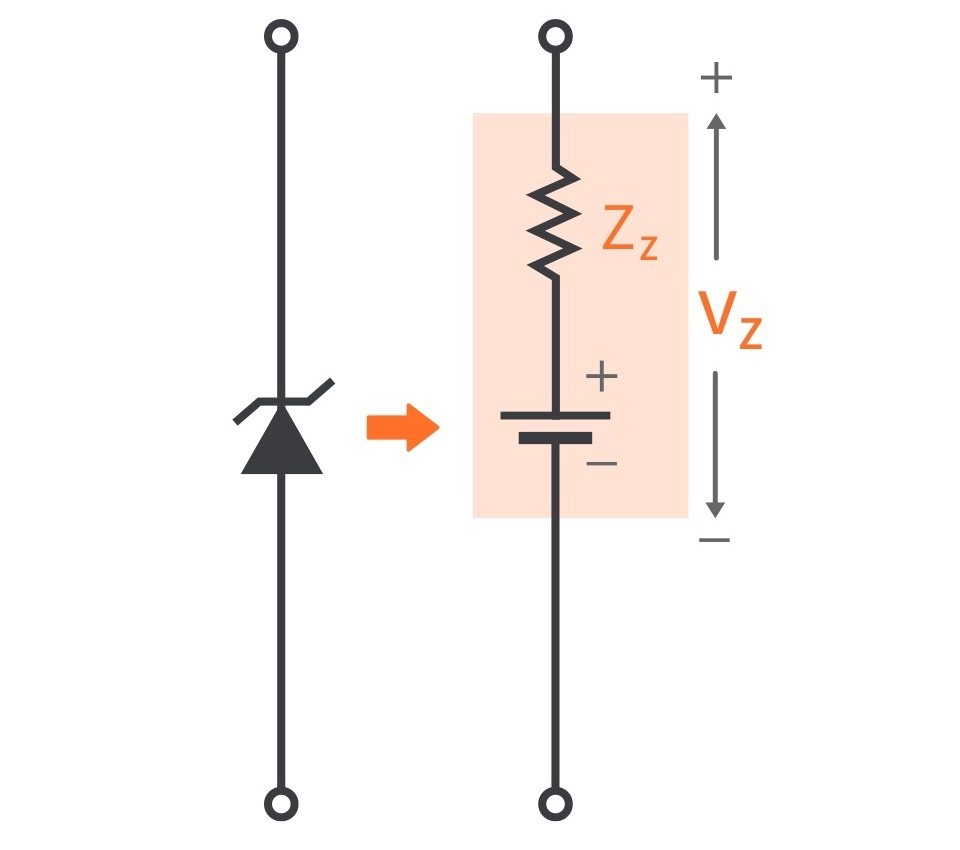

The load regulation can also change with current due to changes in the dynamic resistance of the zener diode. Aging can also affect the line and load regulation of a zener diode over time, causing the output voltage to drift from its original value.
Factors to Consider When Choosing a Zener Diode
When choosing a zener diode, several factors should be considered, such as the minimum and maximum zener voltage, the power dissipation rating, and the temperature coefficient. The minimum and maximum zener voltage determine the range of output voltage that the zener diode can regulate.
The power dissipation rating determines the maximum power that the zener diode can handle without overheating. The temperature coefficient determines how the zener voltage changes with temperature, which affects the line regulation of the zener diode.
Advantages and Disadvantages of Zener Diodes
Zener diodes have several advantages over other voltage regulators, such as simplicity, low cost, and high efficiency. They also have a fast response time and are immune to noise and transients.
However, zener diodes also have some disadvantages, such as limited power handling capability, poor regulation at low currents, and high dynamic resistance. They also require a minimum current to maintain a stable voltage, which can be a disadvantage in low-power applications.
Conclusion
In conclusion, the line and load regulation of zener diodes are important parameters that determine the ability of the zener diode to maintain a constant output voltage. The line and load regulation can be calculated using simple formulas and are affected by several factors, such as temperature, current, and aging.
When choosing a zener diode, several factors should be considered, such as the minimum and maximum zener voltage, the power dissipation rating, and the temperature coefficient. Zener diodes have several advantages over other voltage regulators, but also have some disadvantages that should be taken into account.
Overall, zener diodes are a reliable and cost-effective solution for voltage regulation in a wide range of electronic applications.
